WHITE REFLECTOR
Introduction:
Features & Benefits of short wave infrared heating lamp
Small volume, large power, rapid rise of temperature, minimal thermal inertia, long life. Good permeability to flat objects. Its specific radiation performance can meet the workpiece under the speed of 0.5-120m/min fast drying molding;The gold coating on the infrared heating tube reflects infrared radiation, which almost doubles the effective radiation of the product.
Application:
Mainly used in solar energy industry, shoemaking machinery, plastic bottle blowing machine, printing and dyeing machine, acrylic production, food processing, pre-shrink molding machine on the assembly line drying, heating. There are also local fast high temperature heating and baking machines such as ovens.

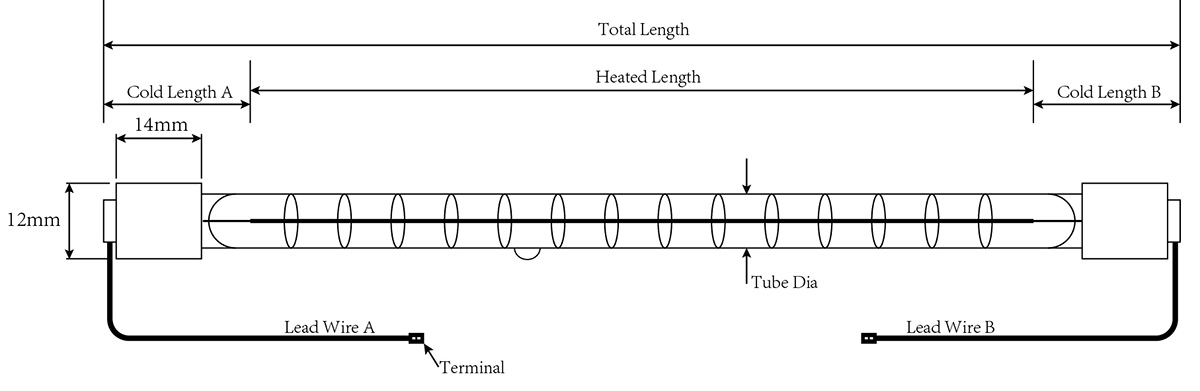

| Type | Wattage(W) | Voltage(V) | Color Temperature(K) | Tube Diameter(mm) | Total Length(mm) | Life(H) | Cold Length(mm) |
| HYIR | 200 | 110-240 | 2000-2500 | 8-10 | 118-250 | 5000 | ≥35 |
| 500 | 110-380 | 2000-2500 | 10-12 | 150-400 | 5000 | ||
| 800 | 110-380 | 2000-2500 | 10-14 | 250-500 | 5000 | ||
| 1000 | 110-400 | 2000-2500 | 10-18 | 280-800 | 5000 | ||
| 1200 | 110-440 | 2000-2500 | 10-18 | 350-1000 | 5000 | ||
| 1500 | 120-440 | 2000-2500 | 12-18 | 350-1200 | 5000 | ||
| 1800 | 220-480 | 2000-2500 | 12-18 | 350-1500 | 5000 | ||
| 2000 | 220-480 | 2000-2500 | 12-18 | 350-1800 | 5000 | ||
| 2500 | 235-480 | 2000-2700 | 12-18 | 350-1800 | 3000 | ||
| 3000 | 235-480 | 2000-2700 | 12-18 | 350-2000 | 3000 | ||
| 3500 | 235-575 | 2000-2700 | 12-18 | 350-2000 | 2500 | ||
| 4000 | 380-575 | 2000-2700 | 14-18 | 350-2000 | 2500 |
* If you do not find the product you want, please go to the customized service.
